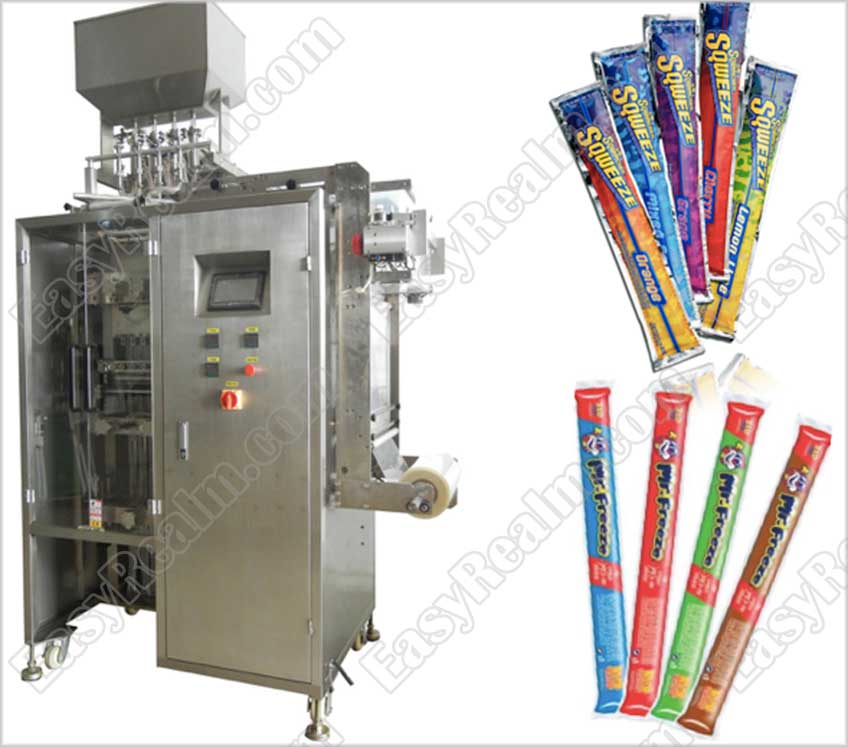

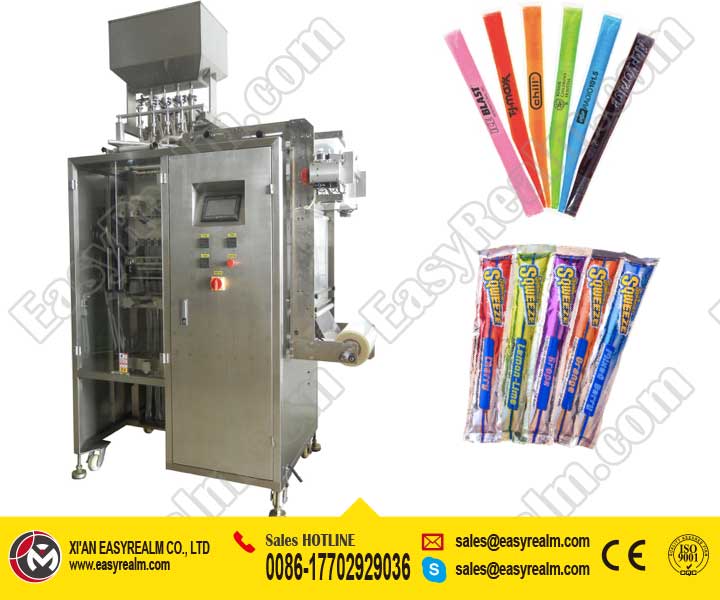

Multi-Lane High Speed Liquid Stick Packs Ice Pops Freeze Pops Packing Machine
This multi-lane packing machine is for liquid stick packs packing as four side sealed, suitable for freeze pops packing, ice pops packaging, freezer pops packing.
Product Parameters
Alibaba https://easyrealm.en.alibaba.com
BrandEASYREALM
NO.YLM-480LS
Machine Introduction
Multi-Lane High Speed Liquid Stick Packs Ice Pops Freeze Pops Packing Machine
This multi-lane liquid packing machine is suitable for packing liquid or paste materials, such as juice, water, ketchup, ice pops (freeze pops).drinks, flavor drinks, etc.
Machine Video
Machine Applications

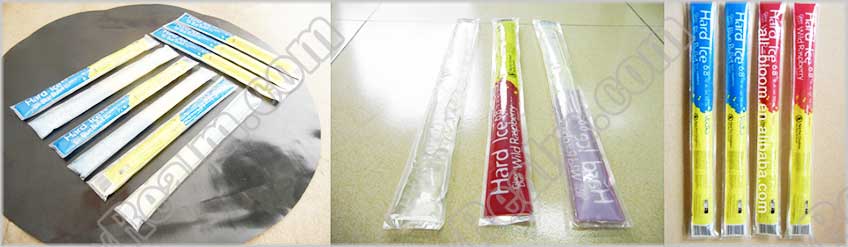

Pouch Types
- PLC control system, large touch screen, stable and easy to use;
- Advanced technology, high precision and high speed;
- No film alarm, no waste of film;
- Photoelectric tracking system for precise bag length and position of film.
Machine Specifications
| Model | YLM-480LS |
| Lanes number | 4~6 lanes |
| Capacity | 10--40 bags/min/lane |
| Bag size | L:120--400mm; W:35-60mm |
| Film width | Max.480mm |
| Film thickness | 0.05--0.1mm |
| Sealing type | 4 sides sealed |
| Control system | PLC+Servo+Touch screen |
| Power supply | 1N+PE/50HZ/AC220V/4.5KW |
| Air consumption | 0.8 MPA 0.8m3/min |
| Dimension | 1555*1686*2400mm |
| Weight | 550kgs |
