Multi-lane(8 lanes) Liquid Sachet Filling Tomato Ketchup Four Side Sealed Packing Machine
This multi-lane paste/liquid filling machine is for paste/liquid sachet packaging as four side sealed, suitable for tomato ketchup packing, sauce filling packing, shampoo sachet packaging, bath gel sachet packing, hair conditioner sachet filling packaging.
- Brand
- EasyRealm
- Category
- Vertical FFS Packing Machine
- SKU
- ER-PM-74
- MPN
- ER-PM-74
Product Parameters
- Brand
- EASYREALM
- NO.
- YLM-ML4S-720L
Machine Introduction
Multi-lane(8 lanes) Liquid Sachet Filling Tomato Ketchup Four Side Sealed Packing Machine
This multi-lane sachet filling packing machine is suitable for packing plastic sachet bags with four side sealed of such products:
Foods: salad, mayonnaise, tomato paste, tomato ketchup,edible oil, sauce, etc
Personal care: shampoo, bath gel, skin lotion, cosmetic cream, hair conditioner, etc
Others: car wash detergent, etc
Machine Video
Machine Applications

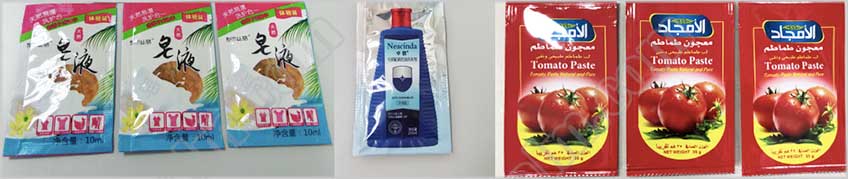

Pouch Types
- 8 lanes, high speed, greatly saving labor costs;
- PLC control system, large touch screen, stable and easy to use;
- Advanced technology, high precision;
- Shutdown while no film, no waste of film;
- Photoelectric tracking system for precise bag length and position of film, nice appearance of finished products.
Machine Specifications
| Model | YLM-ML4S-720L |
| Lanes number | 4~10 lanes |
| Capacity | max. 40 bags per min per lane |
| Bag size | L:45--120mm; W:35-90mm |
| Film width | Max.720mm |
| Film thickness | 0.05--0.1mm |
| Sealing type | 4 sides sealed |
| Control system | PLC+Servo+Touch screen |
| Power supply | 1N+PE/50HZ/AC220V/4.1KW |
| Air consumption | 0.8 MPA 0.8m3/min |
| Dimension | 1153*1654*1750mm |
| Weight | 400kgs |
